New Equipment

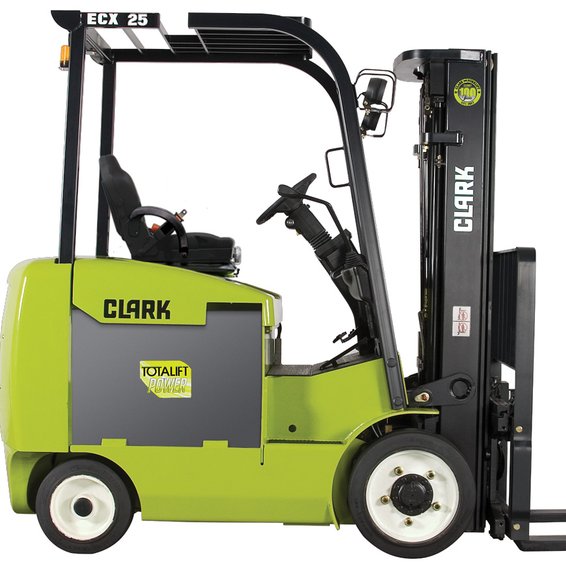

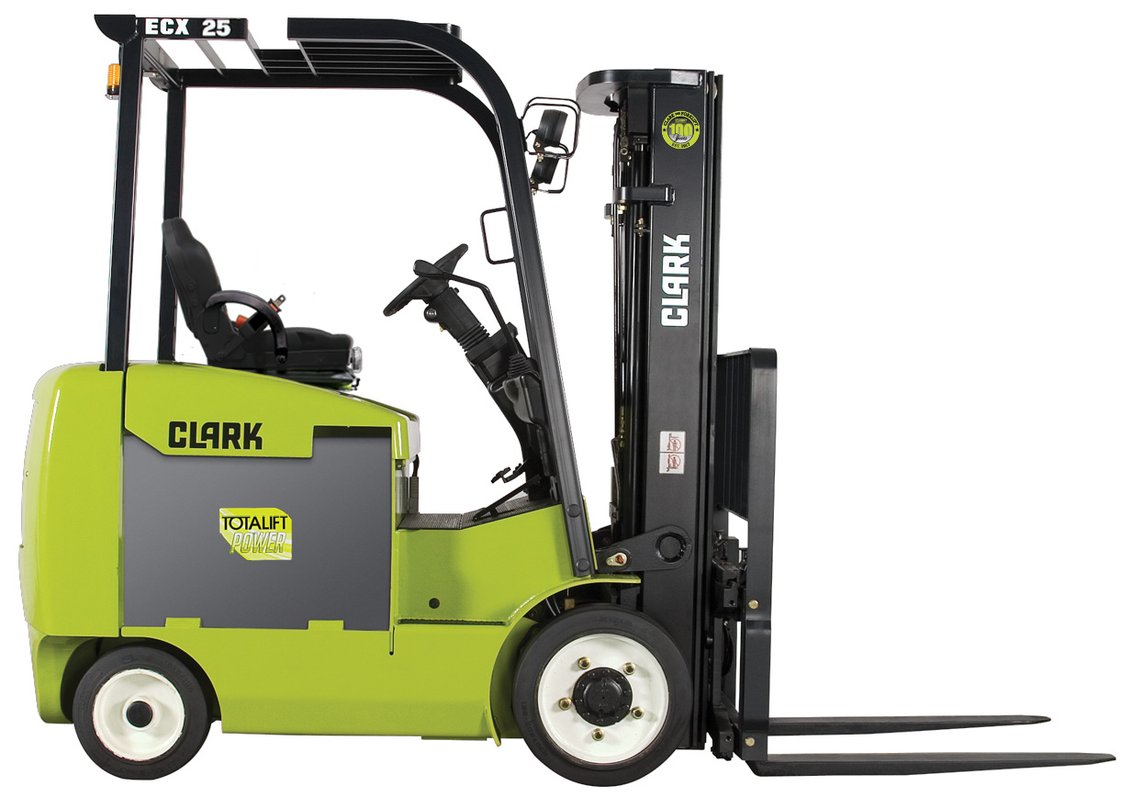

CLARK ECX25 Electric Rider Forklift
Built for heavy duty jobs, the Clark ECX25 Electric Rider Forklift can increase productivity on your job. Perfect for manufacturing, warehousing, bottling, and shipping or receiving, this machine can tackle whatever job placed in front of it. It is built with key considerations for ergonomics, operator comfort, safety, and top-notch performance. Minimize downtime today with the Clark ECX25 and get superior results for your business.
Specifications
| Brakes | Drum/Shoe |
| Power Mode | Electric |
| Standard Mast: Free Lift | 61.5 in |
| Mast | 3-Stage |
| Maximum Fork Height | 189.0 in |
| Cable Connection Position | A |
| Cable Length | 18.0 ft |
| Control Type | AC Control |
| Drive Motor | Dual AC |
| Plug Type | SB-350 Gray |
| Minimum Battery Weight | 2600.0 lbs |
| Steering | Hydrostatic |
| Center of Wheelbase | 4.5 in |
| Maximum Fork Spread | 35.0 in |
| Min. Aisle Right Ang Stack +LL | 89.7 in |
| Tread (Front/Rear) | 35.8/34.2 |
| Wheelbase | 53.0 in |
| Height To Top Overhead Guard | 88.0 in |
| Lowered Overall Height | 83.0 in |
| Overall Length | 86.2 in |
| Overall Width | 43.9 in |
| Front Overhang | 16.7 in |
| Steer Tire Size | 16 x 6 x 10.5 |
| Drive Tire Size | 21 x 8 x 15 in |
| Lift Capacity | 5000.0 lbs |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 189.0 in |
| Travel Speed Loaded | 8.5 |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
