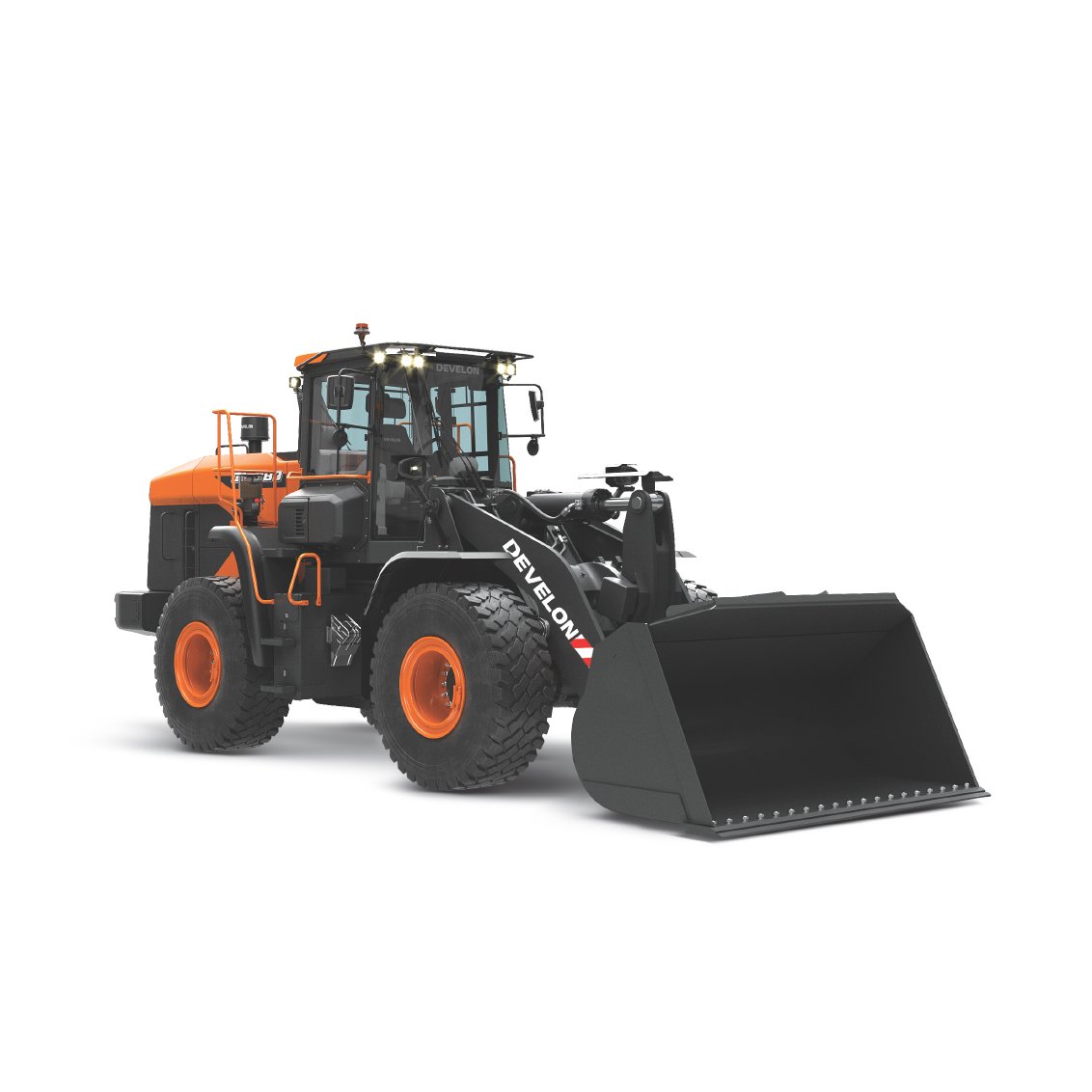

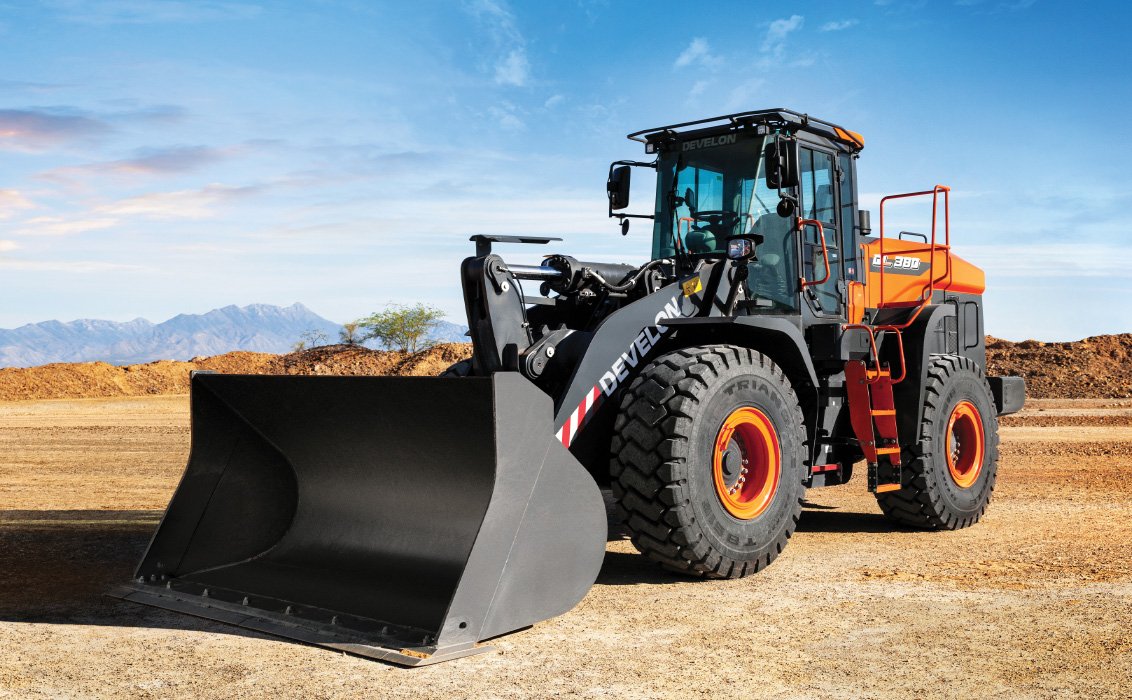

DEVELON DL380-7 Wheel Loader
The Develon DL380-7 wheel loader delivers market-leading productivity, durability, and reliability to help you get the job done in the most challenging conditions. Larger axles and increased bucket capacity mean that you can move more material in fewer passes as compared to the 5-series wheel loader. Compliant with Tier-4 emissions, the DL380-7 engine is more fuel efficient and provides higher torque. You count on the DL380-7 to maximize uptime even in extreme conditions thanks to the frame’s articulating design and increased strength.
This model comes equipped with cutting-edge technologies like- Situation Awareness Technology (SAT), Develon Smart Guidance System (DSGS), and the optional Load Isolating System (LIS) to help you efficiently handle the heaviest loads. Designed to boost operator output, the DL380-7 wheel loader offers a comfier cab, relocated controls, higher visibility, and the Develon Smart Touch Display.
Specifications
Bucket Capacity | 4.8 cu yd |
Operating Weight | 44919.0 lbs |
Horsepower | 271.0 hp |
Engine Manufacturer | Doosan |
Engine Model | DL08 |
Operator Protection | ROPS/FOPS |
Tread Width | 84.6 in |
Overall Width Without Bucket | 122.4 in |
Height to Top of Cab | 138.2 in |
Height to Hinge Pin | 164.2 in |
Overall Width | 122.4 in |
Width Over Tires | 122.4 in |
Overall Length W/Bucket | 326.6 in |
Overall Height | 164.2 in |
Overall Length | 326.6 in |
Dump Height | 119.7 in |
Dump Reach @ Full Height | 48.0 in |
Maximum Operating Height | 164.2 in |
Maximum Operating Weight | 44919.0 lbs |
