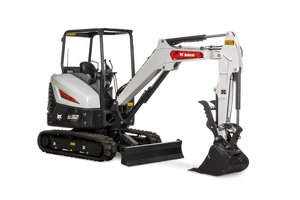

Bobcat E35 Mini Excavator
The Bobcat E35 is a 3-ton compact excavator with a Zero Tail Swing design for unrestricted maneuverability. The machine comes with an angle blade, long arm or clamp ready extendable arm option. As a part of the R-Series, the E35 has increased power and function over previous models and is an industry leading design. Both a 25 and 33 horsepower configuration is available.
Specifications
Bucket Digging Force-Standard | 6968.0 lbf |
Swing Angle - Left | 75.0 degrees |
Boom Type | 1-Piece |
Swing Angle - Right | 55.0 degrees |
Maximum Digging Depth | 123.0 in |
Operating Weight | 8223.0 lb |
Engine | D1803-M-DI |
Engine Manufacturer | Kubota |
Power Mode | Diesel |
Emissions Tier | Tier 4 Interim |
Rated RPM | 2400.0 rpm |
Horsepower | 33.3 hp |
Fuel Tank Capacity | 14.0 gal |
Hydraulic Pumps - Type | Piston |
Auxiliary Circuit Flow | 16.9 gal/min |
Main Relief Pressure | 2987.0 psi |
Operator Protection | ROPS |
Track Shoe Type | Rubber |
Ground Pressure | 4.3 psi |
Track Length | 81.0 in |
Track Shoe Width | 12.6 in |
Maximum Dumping Height | 132.0 in |
Maximum Reach at Ground Level | 206.0 in |
Overall Height | 96.0 in |
Overall Length | 190.0 in |
Overall Width | 69.0 in |
Travel Speed - Low | 1.6 mph |
Travel Speed - High | 2.9 mph |
