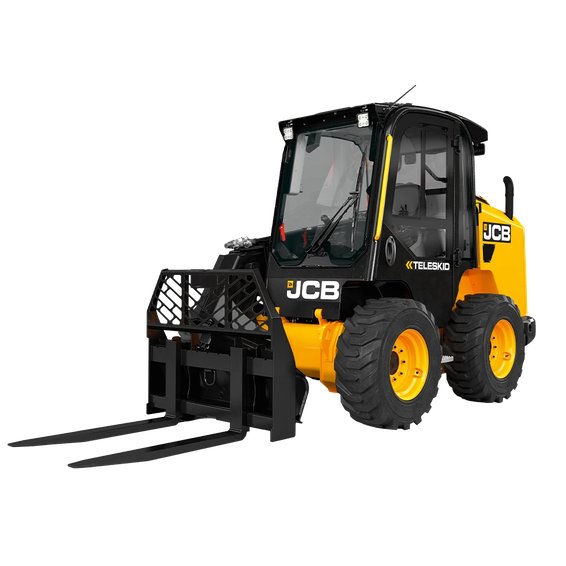

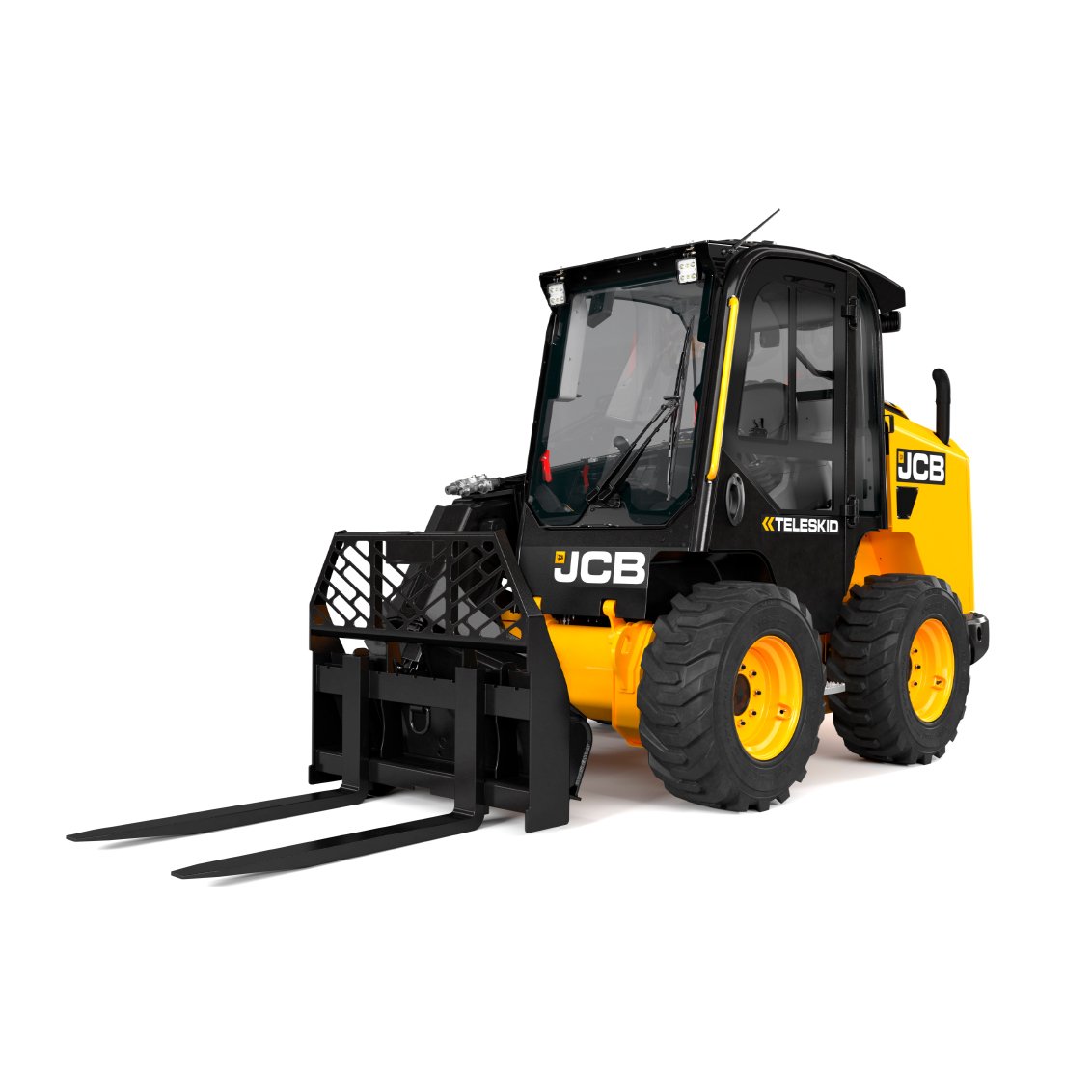

JCB 3TS-8W Teleskid Skid Steer Loader
The JCB Teleskid is the only skid steer loader with a telescopic boom, allowing it to reach 60% further and lift 8% higher than any skid steer on the market, plus it can dig to a depth of 3 feet. An industry first!
The JCB Teleskid is the only skid steer that combines the benefits of both vertical lift, providing increased lift capacity and height, and radial lift, enhancing excavation and grading, all in one machine.
Combining the capabilities of a forklift, telescopic handler, compact loader and a skid steer, the Teleskid offers unmatched versatility on the job site. Load high-sided trucks without first having to build a ramp. Reach both sides of an 8-foot trailer without having to drive to the far side or reposition the trailer. Lift and place materials and supplies over silt fences and other barriers. Dig out trees and roots, or clear a drainage ditch.
The 3TS-8W Teleskid has a rated operating capacity of 3,208 lb retracted, or 1,300lb with the boom fully extended, and an SAE operating weight of 9,859 lb.
Specifications
Engine Manufacturer | EcoMAX |
Engine Model | TCAE-55 |
Power Mode | Diesel |
Horsepower | 74.0 hp |
Hydraulic Tank Capacity | 14.5 gal |
Operator Protection | Cab |
Width Over Tires | 70.9 in |
Loader Dump Height | 115.7 in |
Overall Length | 149.6 in |
Overall Length w/Bucket | 149.6 in |
Overall Width | 72.8 in |
Dump Height | 90.6 in |
Height to Hinge Pin | 126.0 in |
Length With Bucket (Dig/Carry) | 149.6 in |
Maximum Operating Height | 161.4 in |
Operating Weight | 9859.1 lbs |
Height to Top of Cab | 82.7 in |
Maximum Overall Height | 161.4 in |
Overall Height | 161.4 in |
Operating Capacity | 3208.0 lbs |
