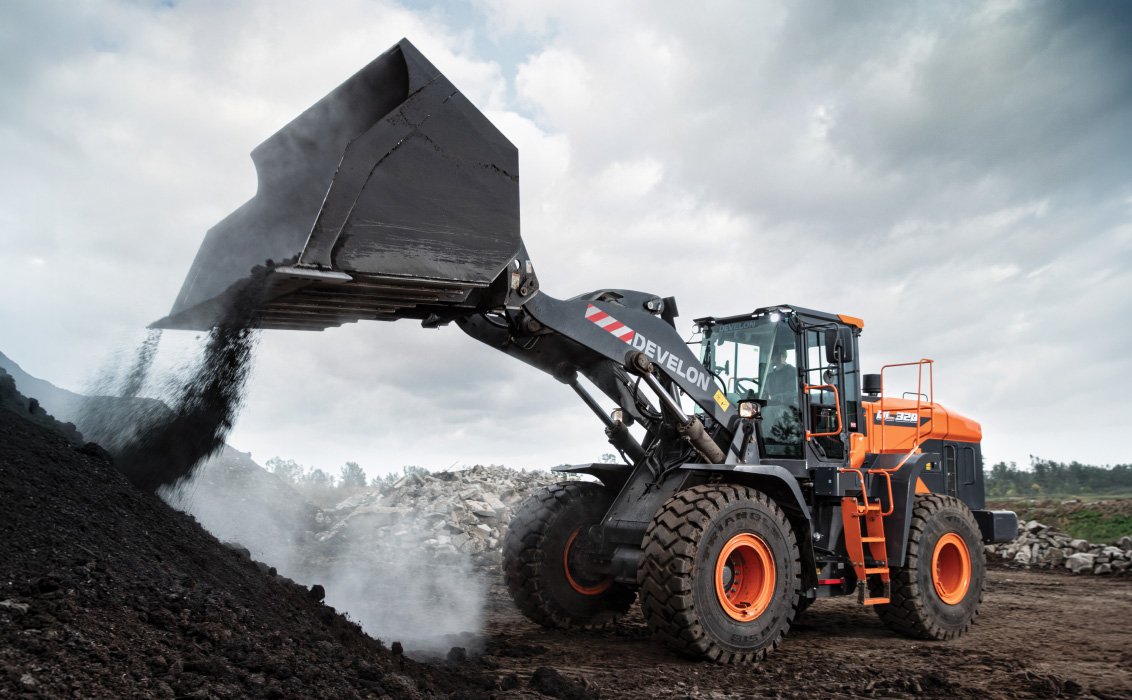

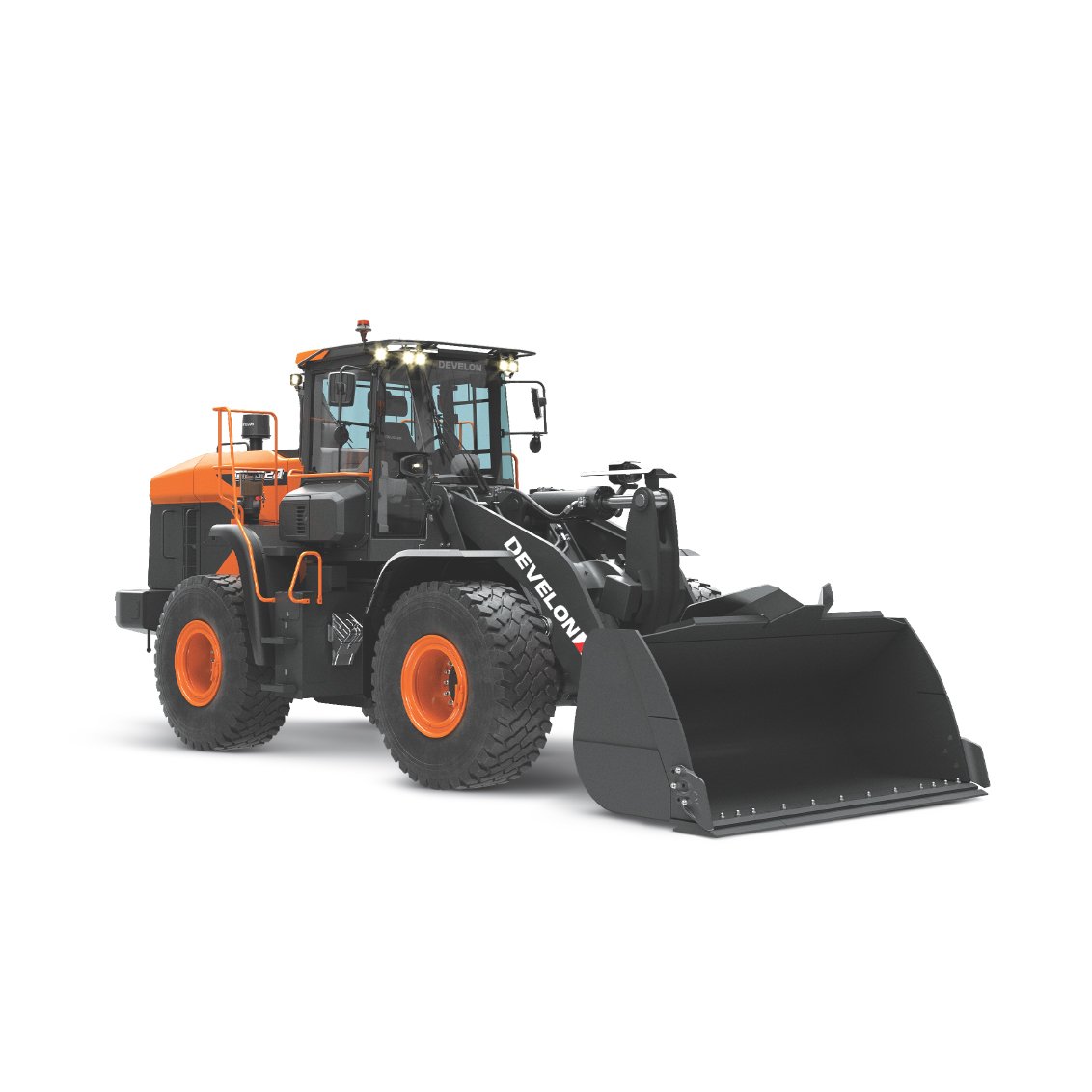

DEVELON DL320-7 Wheel Loader
The Develon DL320-7 is an exceptionally high performing machine packing more horsepower to complete your next job with ease. A larger bucket and higher lifting capacity help you move more material as compared to its predecessor 5-series wheel loader. The DL320-7 can also endure harsher conditions owing to an improved windshield protection and reinforced box frame.
This model comes with a redesigned radiator that has a 40% wider fin spacing to make daily maintenance easier. The DL320-7 features an optional Load Isolation System (LIS) that improves vehicle stability while moving for higher productivity. Aimed at helping operators accomplish more, the Develon DL320-7 offers many improvements like greater all-around visibility, helpful tips from the Develon Smart Guidance System (DSGS), and a more intuitive location for frequently used controls.
Specifications
Bucket Capacity | 4.2 cu yd |
Operating Weight | 43506.0 lbs |
Horsepower | 271.0 hp |
Engine Manufacturer | Doosan |
Engine Model | DL08 |
Operator Protection | ROPS/FOPS |
Tread Width | 84.6 in |
Overall Width Without Bucket | 118.1 in |
Height to Top of Cab | 138.2 in |
Height to Hinge Pin | 164.2 in |
Overall Width | 118.1 in |
Width Over Tires | 118.1 in |
Overall Length W/Bucket | 325.6 in |
Overall Height | 164.2 in |
Overall Length | 325.6 in |
Dump Height | 120.7 in |
Dump Reach @ Full Height | 48.0 in |
Maximum Operating Height | 164.2 in |
Maximum Operating Weight | 43506.0 lbs |
