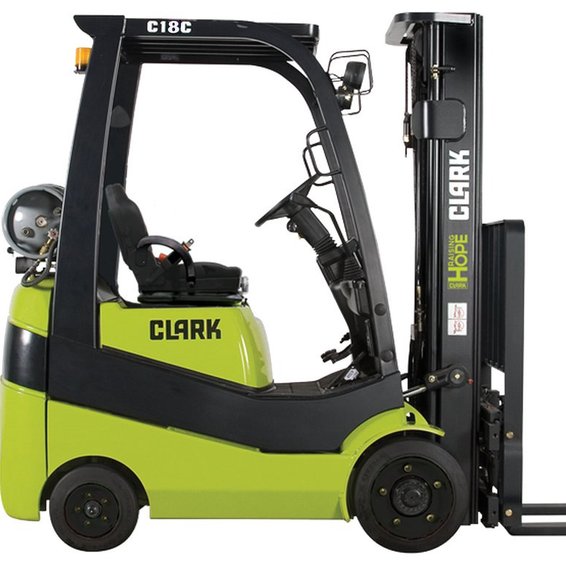

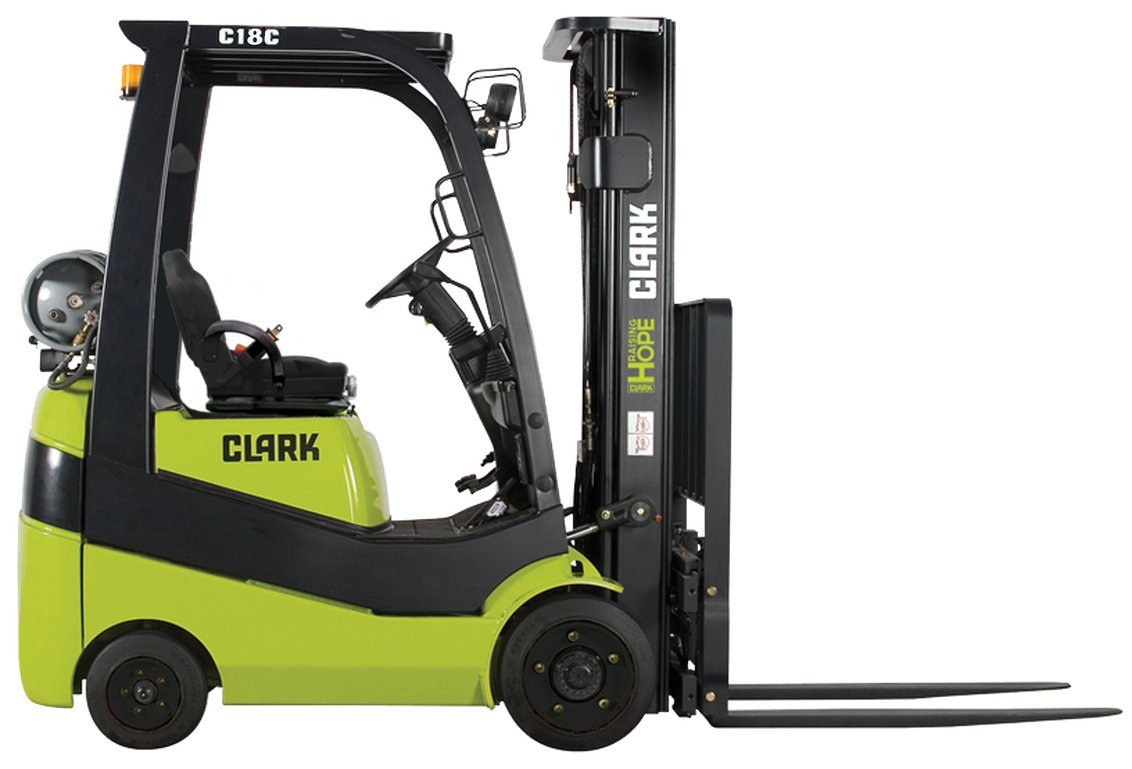

CLARK C18C IC Cushion Forklift

CLARK C18C IC Cushion Forklift CLARK C15C Series IC Cushion Forklift

New Equipment

The CLARK C18C is a 3,500 lbs (1,800 kg) IC Cushion forklift from the Gen2 C15-Series lineup which includes narrow-width models. This series is designed for distribution, manufacturing, warehousing of all types, and is suited for the toughest applications. To learn more about CLARK's Gen 2 C15C range of forklifts, contact your local Williams Machinery for more details.

Request a Quote

Specifications

Brakes	Drum

Engine Manufacturer	Mitsubishi
Cylinders/Displacement	122.0
Engine	4G63
Power Mode	LPG
Horsepower	52.0 hp
Torque @ RPM	101.0 ft-lb

Mast	3-Stage
Standard Mast: Free Lift	4.3 in
Lowered Overall Height	83.0 in
Maximum Fork Height	188.0 in

Steering	Hydrostatic

Transmission	Powershift
Number of Speeds	1F/1R

Wheelbase	48.0 in
Overall Width	37.0 in
Tread (Front/Rear)	31.1/32.4
Center of Wheelbase	5.0 in
Fork Size (T x W x L)	1.5 X 4 X 42 in
Front Overhang	14.9 in
Height to Top Overhead Guard	81.1 in
Maximum Fork Spread	33.0 in
Minimum Aisle Right Ang Stack	87.4 in
Overall Length	81.8 in

Steer Tire Size	14 x 4.5 x 8
Drive Tire Size	18 x 6 x 12.125

Lift Capacity	3500.0 lbs
Maximum Drawbar Pull	3785.0 lbs
Gradeability Loaded @ 1 mph	38.6 percent
Travel Speed Loaded	10.5 mph
Load Center	24.0 in
Max Fork Height Rated Capacity	188.0 in

Current Promotions

Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.

Learn More

Specifications and images may vary in accuracy.
