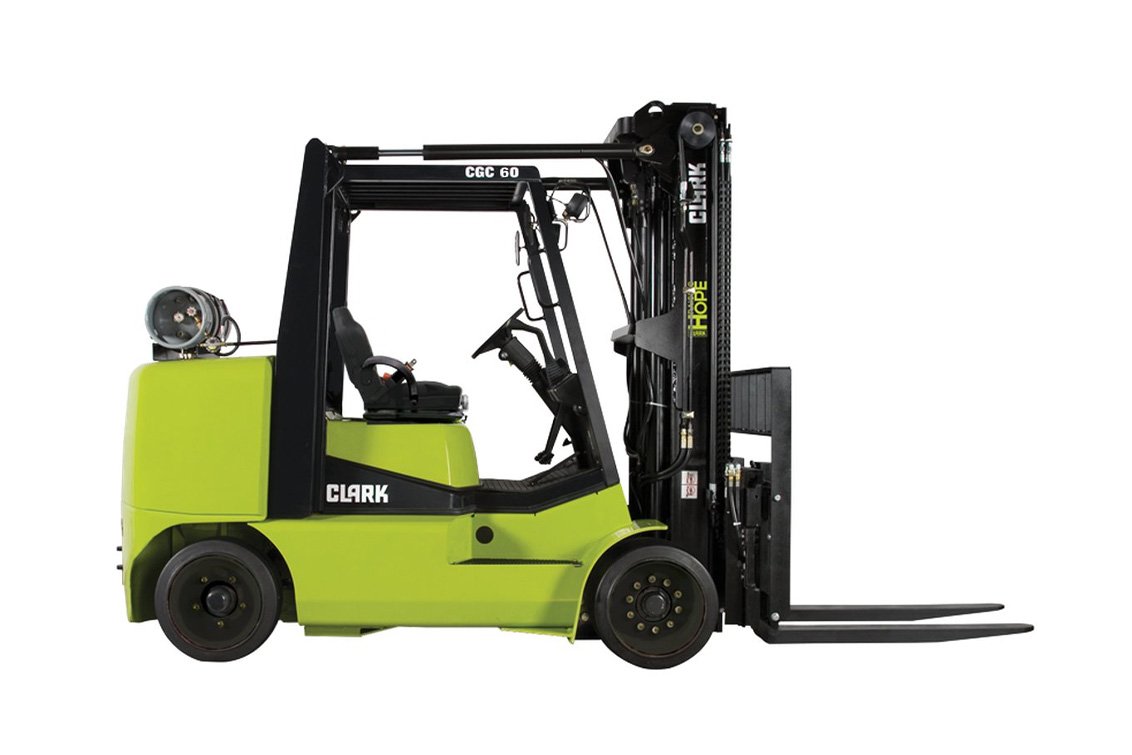

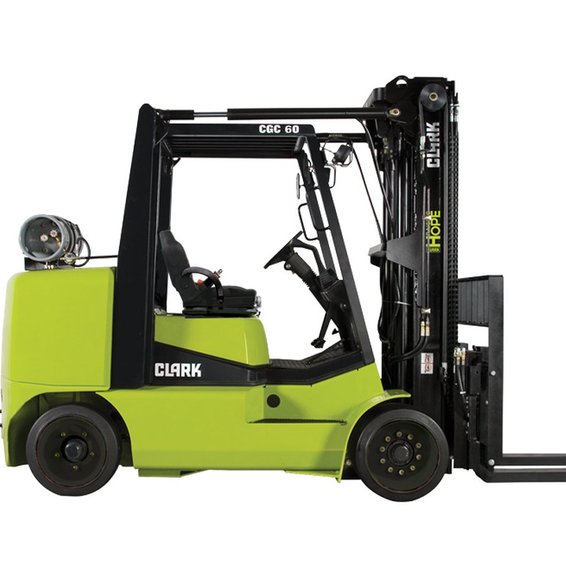

CLARK CGC60 IC Cushion Forklift
The CLARK CGC forklift series is a great fit for tough applications such as manufacturing, paper roll handling, processing mills, and machinery movers. The CGC series is proudly built with evolutionary steps in ergonomics, power, safety, durability, and performance. The CGC forklift maximizes horsepower by load-sensing flow control valve to reduce heat build-up, and optimizes performance of attachments with adjustable flow controls for tilt and auxiliary functions.
Specifications
| Brakes | Power Assist Disc |
| Engine Manufacturer | GM |
| Cylinders/Displacement | 6/262 |
| Engine | 4.3L V-6 |
| Power Mode | LPG |
| Horsepower | 93.0 hp |
| Torque @ RPM | 235.0 ft-lb |
| Mast | 2-Stage |
| Standard Mast: Free Lift | 8.5 in |
| Lowered Overall Height | 99.0 in |
| Maximum Fork Height | 117.0 in |
| Steering | Hydrostatic |
| Transmission | Powershift |
| Number of Speeds | 2.0 |
| Wheelbase | 75.0 in |
| Overall Width | 58.8 in |
| Tread (Front/Rear) | 44.8/42.0 |
| Center of Wheelbase | 6.1 in |
| Fork Size (T x W x L) | 2.5 X 6 X 48 in |
| Front Overhang | 18.9 in |
| Height to Top Overhead Guard | 91.0 in |
| Maximum Fork Spread | 55.0 in |
| Minimum Aisle Right Ang Stack | 123.9 in |
| Overall Length | 112.3 in |
| Steer Tire Size | 22 x 8 x 16 |
| Drive Tire Size | 22 x 14 x 16 |
| Lift Capacity | 13500.0 lbs |
| Maximum Drawbar Pull | 9470.0 lbs |
| Gradeability Loaded @ 1 mph | 26.4 percent |
| Travel Speed Loaded | 10.3 mph |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 159.0 in |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
