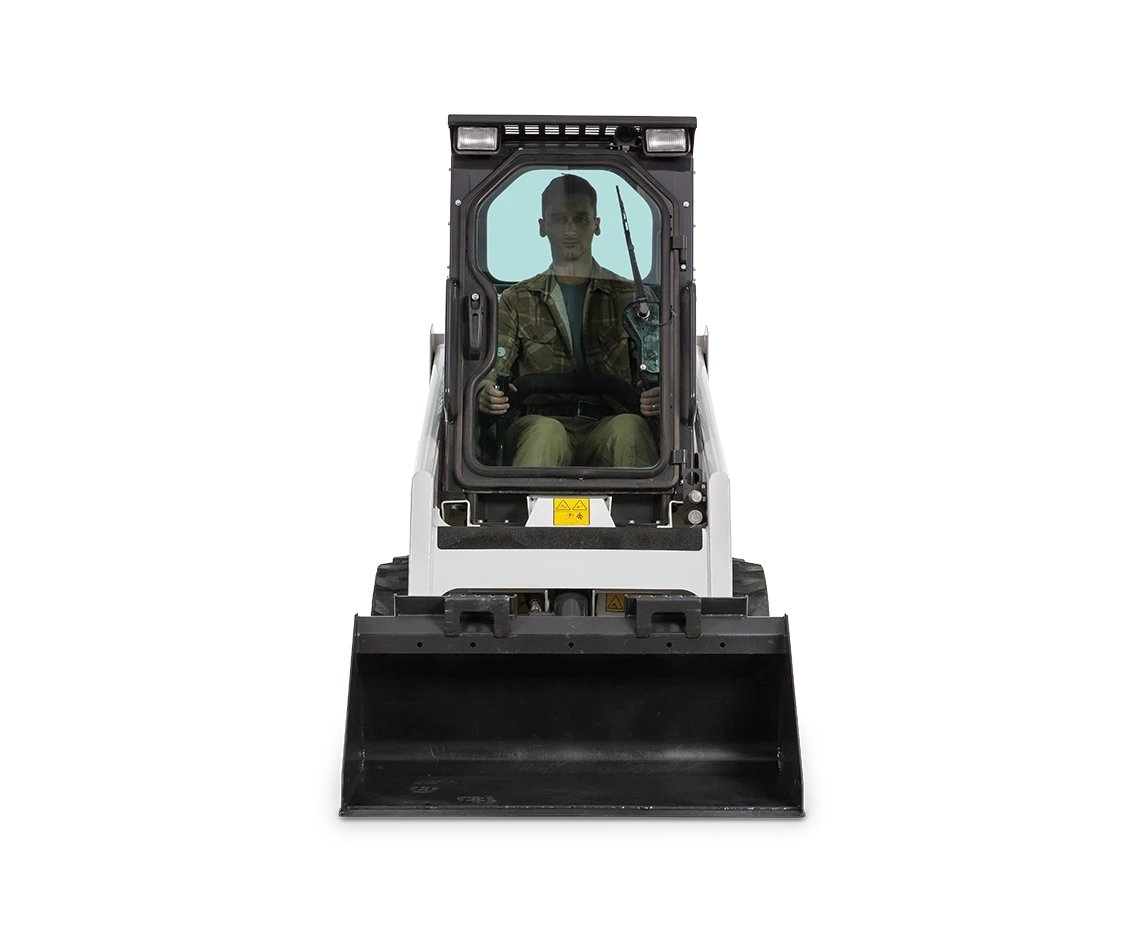

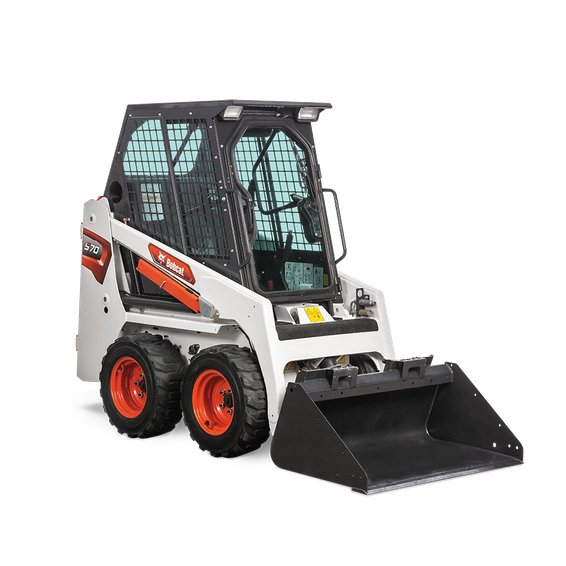

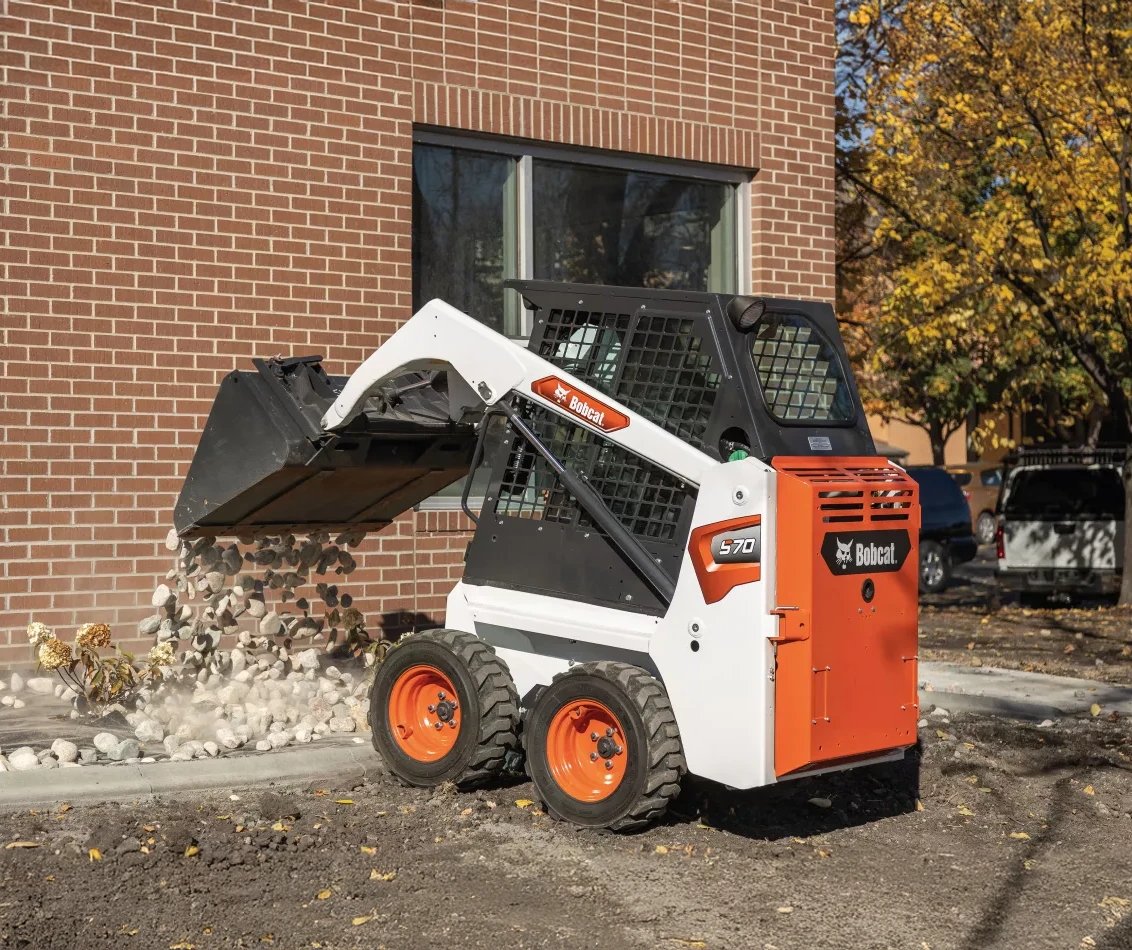

Bobcat S70 Skid Steer Loader
Engineered to take the toughest jobs in the smallest spaces, the S70 skid steer loader is a mere 6 ft tall and 3 ft wide. This machine is ideal for passing through alleys, gates, narrow doorways and working under low ceilings. Utilize a S70 in projects that are too big for a shovel and too small for a large machine.
Specifications
| Tire Size | 23 x 5.70-12, 4PR in |
| Bucket Capacity | 5.8 cu yd |
| Bucket Width | 36.0 in |
| Displacement | 61.1 cid |
| Engine Manufacturer | Kubota |
| Power Mode | Diesel |
| Horsepower | 23.5 hp |
| Fuel Tank Capacity | 6.5 gal |
| Hydraulic Pump Flow (Standard) | 9.8 gal/min |
| Operator Protection | ROPS/FOPS |
| Number of Speeds | Variable |
| Transmission | Hydrostatic |
| Travel Speed | 6.1 mph |
| Dump Reach @ Full Height | 18.5 in |
| Angle of Departure | 26.0 degrees |
| Bucket Rollback (Full Height) | 97.0 degrees |
| Bucket Rollback (Groundline) | 24.0 degrees |
| Clearance Circle Front (w/Bkt) | 58.7 in |
| Dump Angle | 36.0 degrees |
| Dump Height | 76.1 in |
| Ground Clearance | 5.7 in |
| Height to Hinge Pin | 94.5 in |
| Length Less Bucket | 75.5 in |
| Length With Bucket (Dig/Carry) | 97.3 in |
| Maximum Operating Height | 120.0 in |
| Operating Weight | 2795.0 lbs |
| Wheelbase | 28.4 in |
| Width Less Bucket | 35.5 in |
| Height to Top of Cab | 71.4 in |
| Operating Capacity | 700.0 lbs |
| Tipping Load (SAE) | 1512.0 lbs |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
