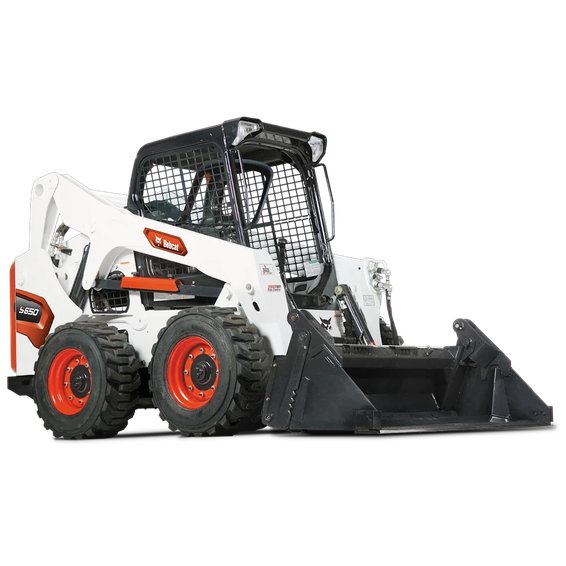

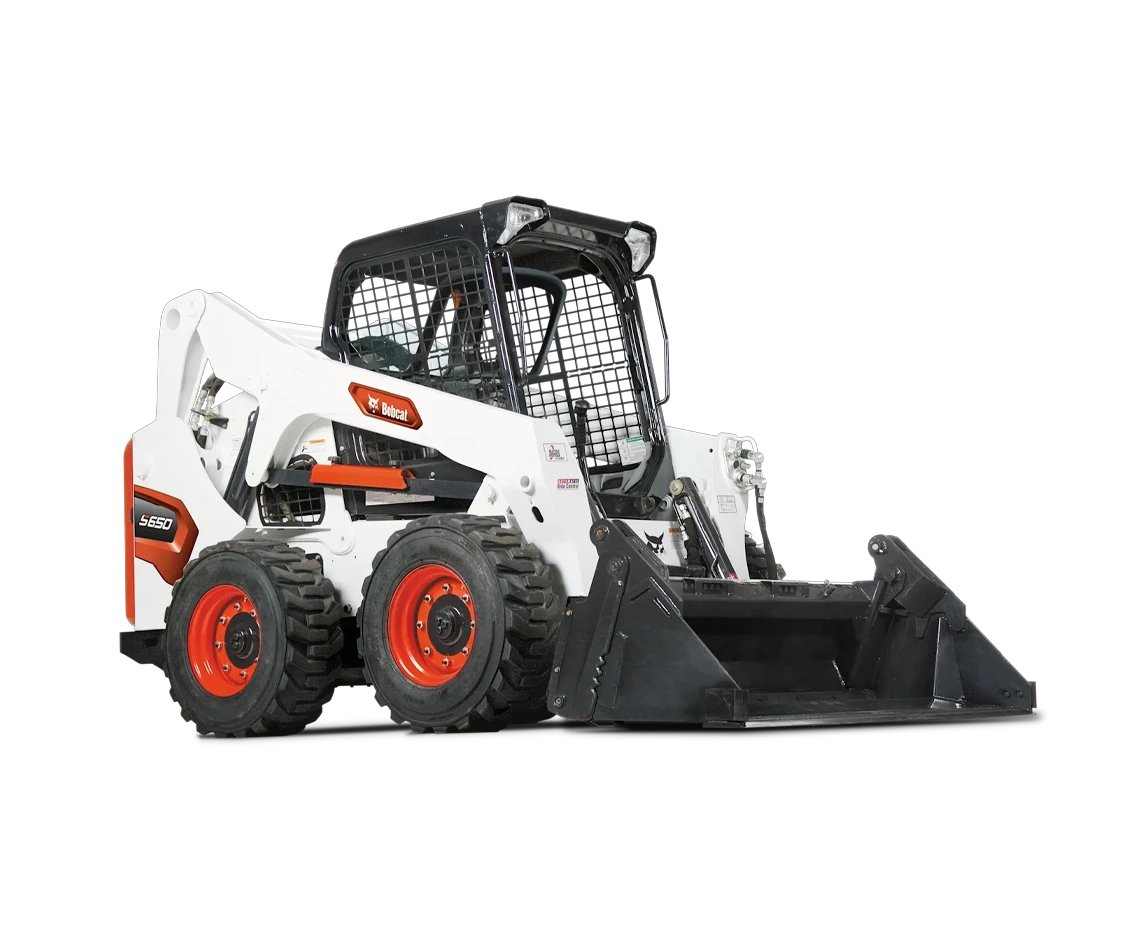

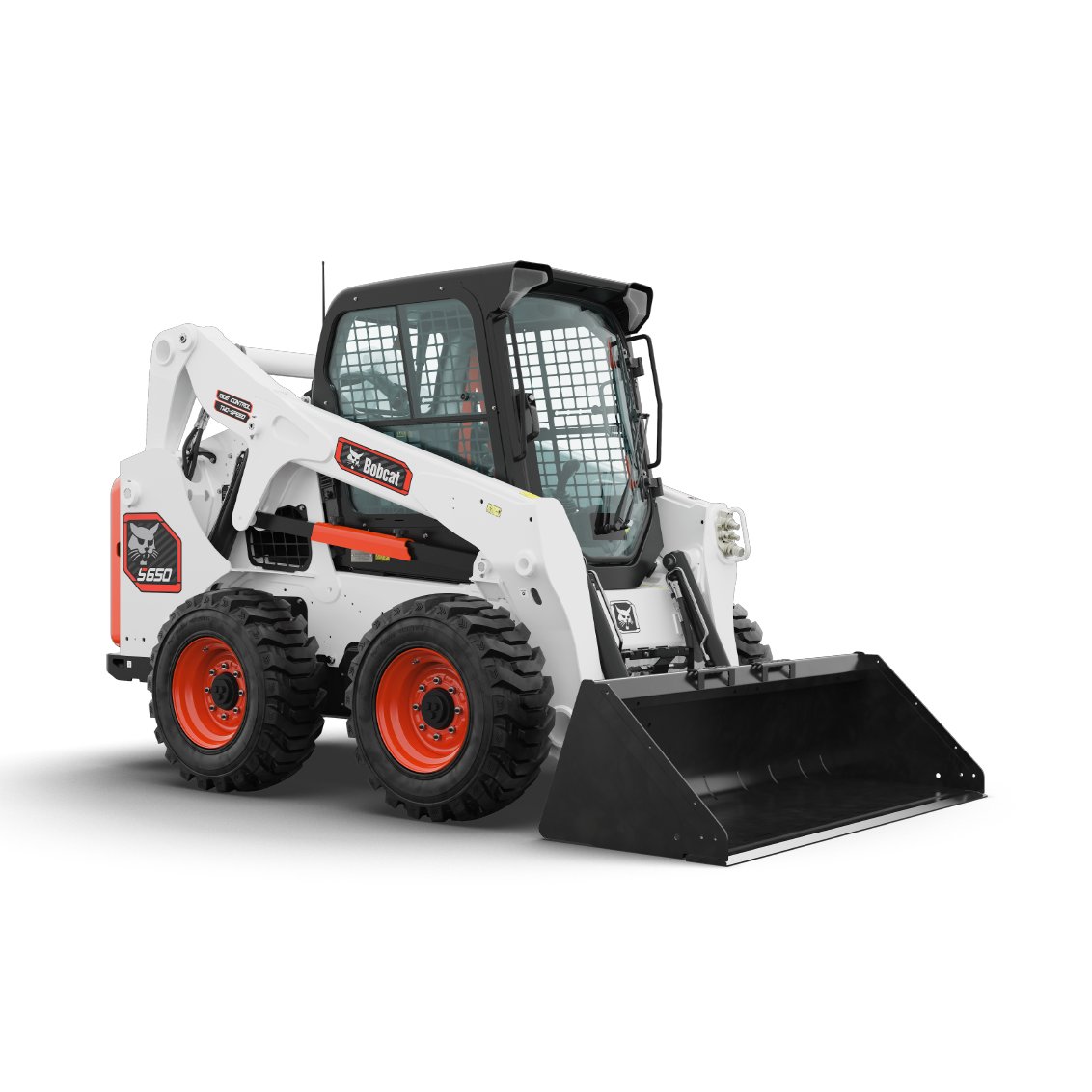

Bobcat S650 Skid Steer Loader

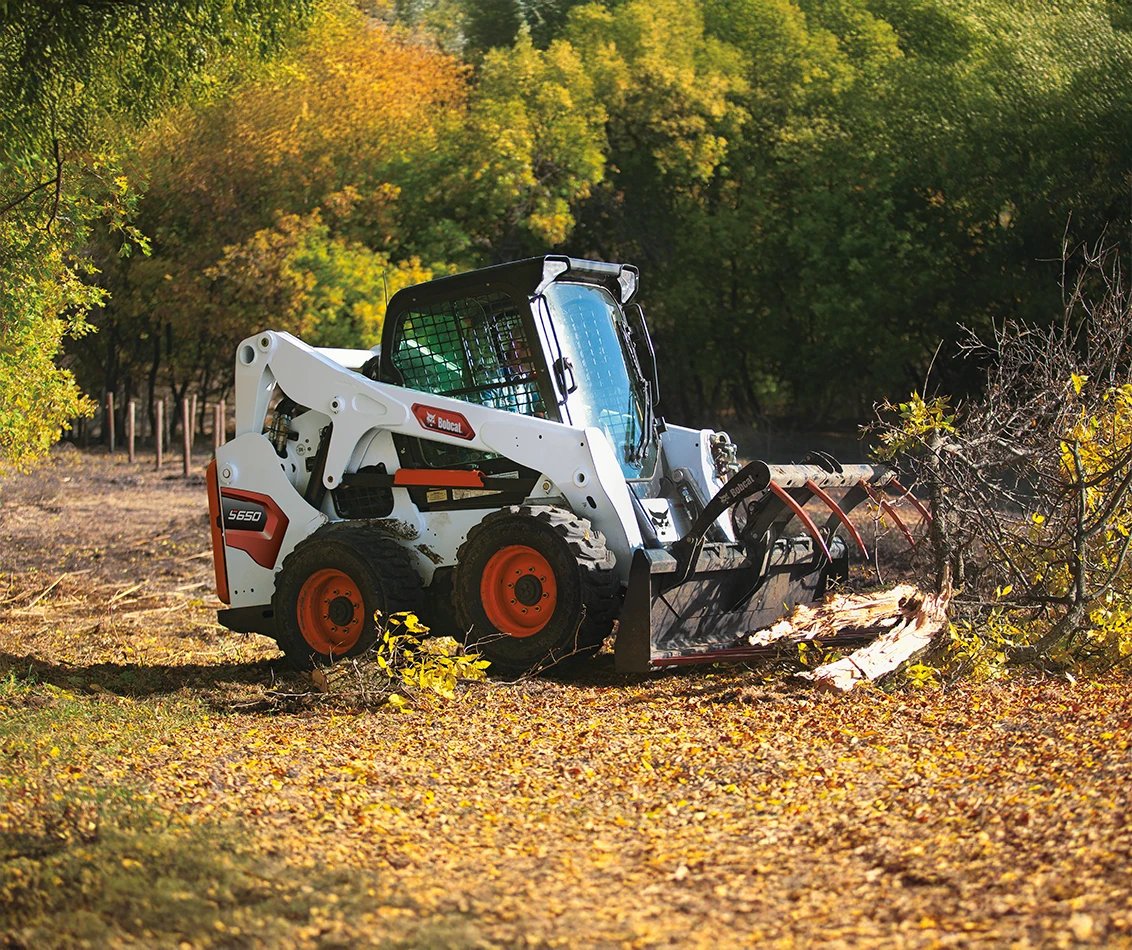

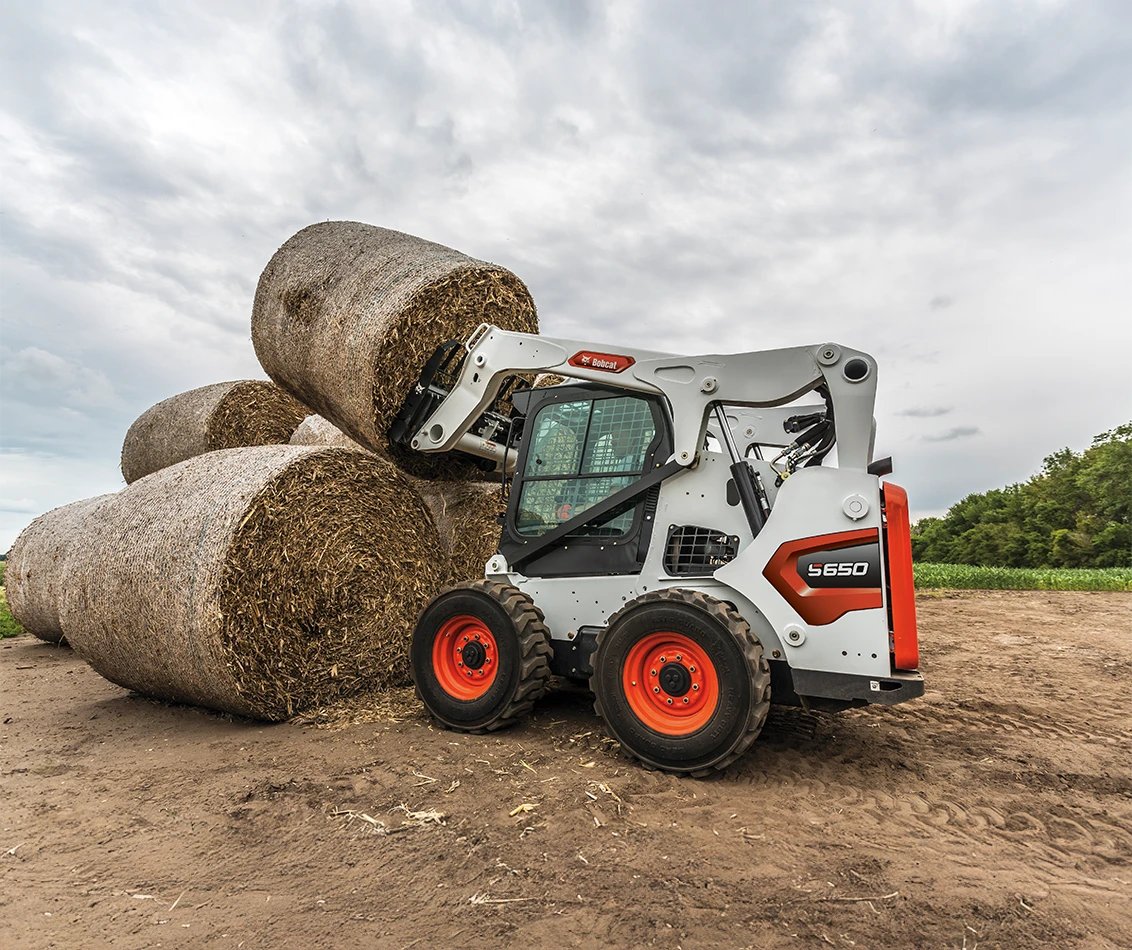

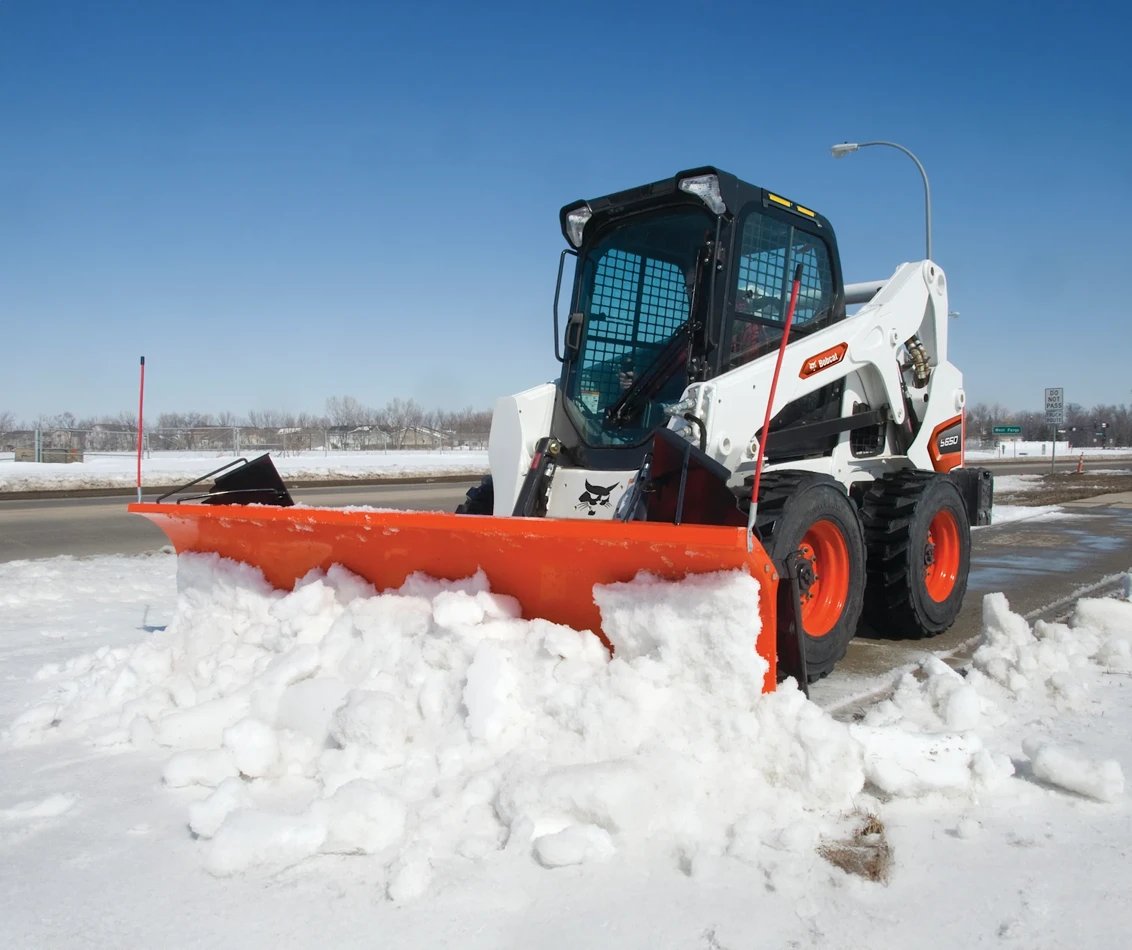

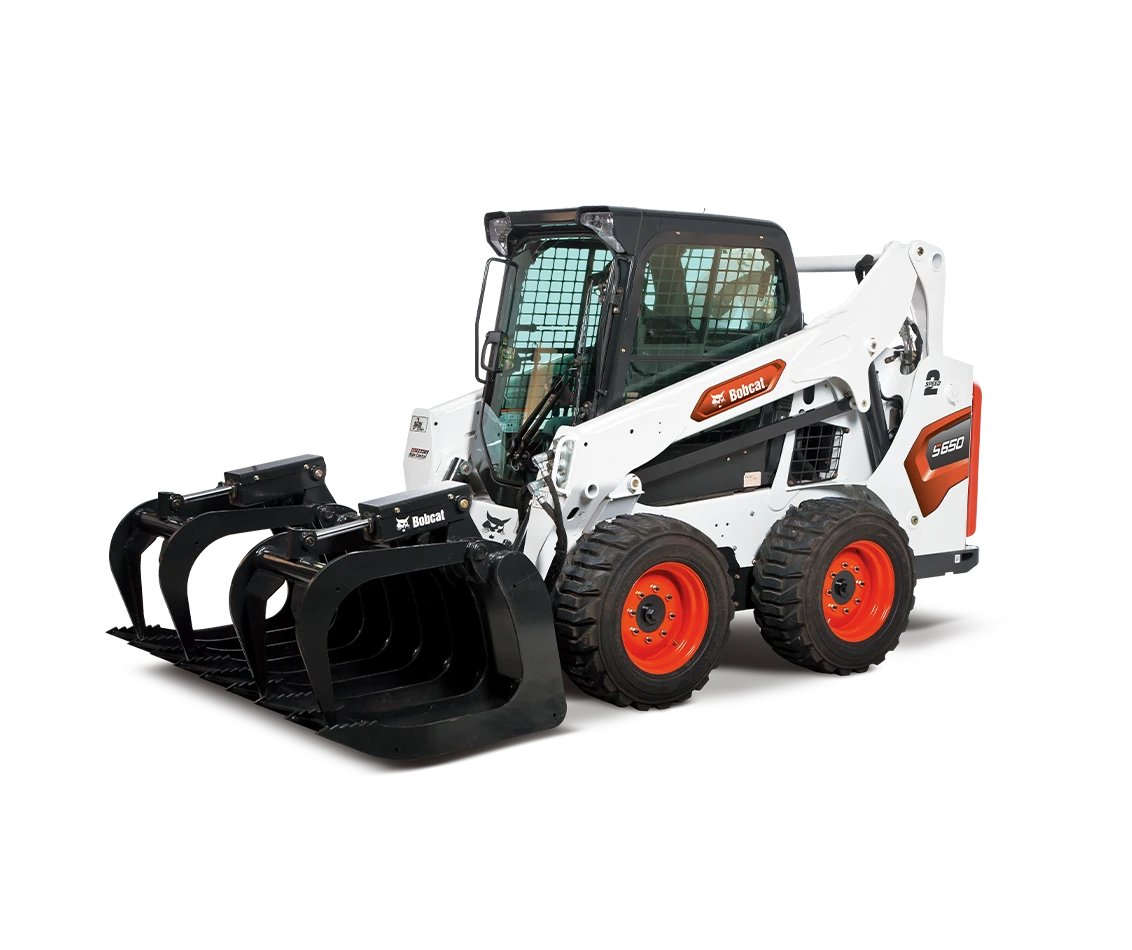

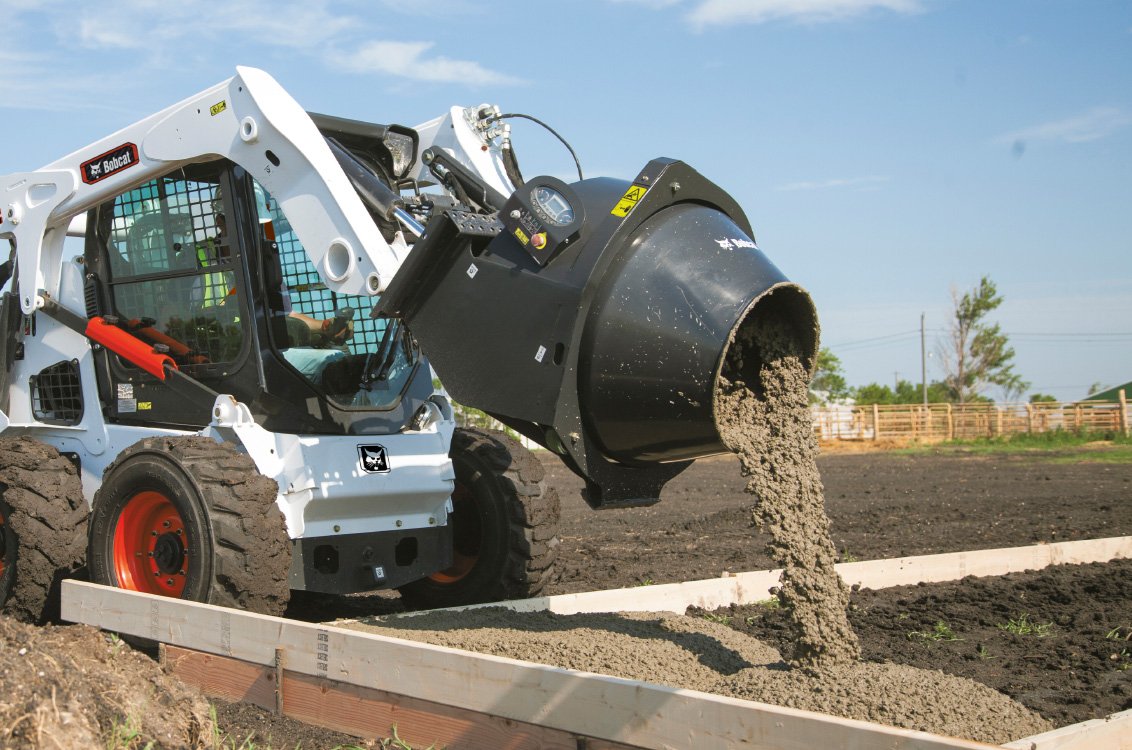

Achieve greater lift capacity and forward reach with the S650 skid steer loader. Its vertical lift path feature makes it perfect for truck loading and pallet handling. Paired with the right attachment, the possibilities of jobs you can perform are endless. Complete with improved visibility and a pressurized cab, you can work in absolute comfort.
Specifications
| Tire Size | 12 x 16.5-12PR in |
| Bucket Capacity | 15.4 cu yd |
| Bucket Width | 74.0 in |
| Engine Manufacturer | Kubota |
| Emissions Tier | Tier 4 Interim |
| Power Mode | Diesel |
| Horsepower | 74.3 hp |
| Fuel Tank Capacity | 27.3 gal |
| Hydraulic Pump Flow (Hi-Flow) | 30.5 gal/min |
| Hydraulic Pump Flow (Standard) | 23.0 gal/min |
| Relief Pressure (Std Flow) | 3500.0 psi |
| Operator Protection | ROPS |
| Number of Speeds | 2F/2R |
| Transmission | Hydrostatic |
| Travel Speed | 7.1 mph |
| Dump Reach @ Full Height | 31.5 in |
| Angle of Departure | 25.2 degrees |
| Bucket Rollback (Groundline) | 30.0 degrees |
| Clearance Circle Front (w/Bkt) | 82.9 in |
| Dump Angle | 42.0 degrees |
| Dump Height | 96.3 in |
| Ground Clearance | 8.1 in |
| Height to Hinge Pin | 124.0 in |
| Length Less Bucket | 108.4 in |
| Length With Bucket (Dig/Carry) | 136.8 in |
| Operating Weight | 8061.0 lbs |
| Wheelbase | 45.3 in |
| Width Less Bucket | 72.1 in |
| Height to Top of Cab | 81.3 in |
| Operating Capacity | 2690.0 lbs |
| Tipping Load (SAE) | 5380.0 lbs |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Buy a new Bobcat compact loader for your jobsite and get 0% financing for up to 48 months and up to $13,500 CAD cash rebates in lieu of financing on skid steer loaders.
During our biggest sale of the year, we have premium machines available from internationally tested brands such as DEVELON, Bobcat, JCB, Clark, Doosan and more. We're offering machines with heavy discounts; some machines are even listed at cost price. Maximize the savings as you upgrade your fleet!
Specifications and images may vary in accuracy.
