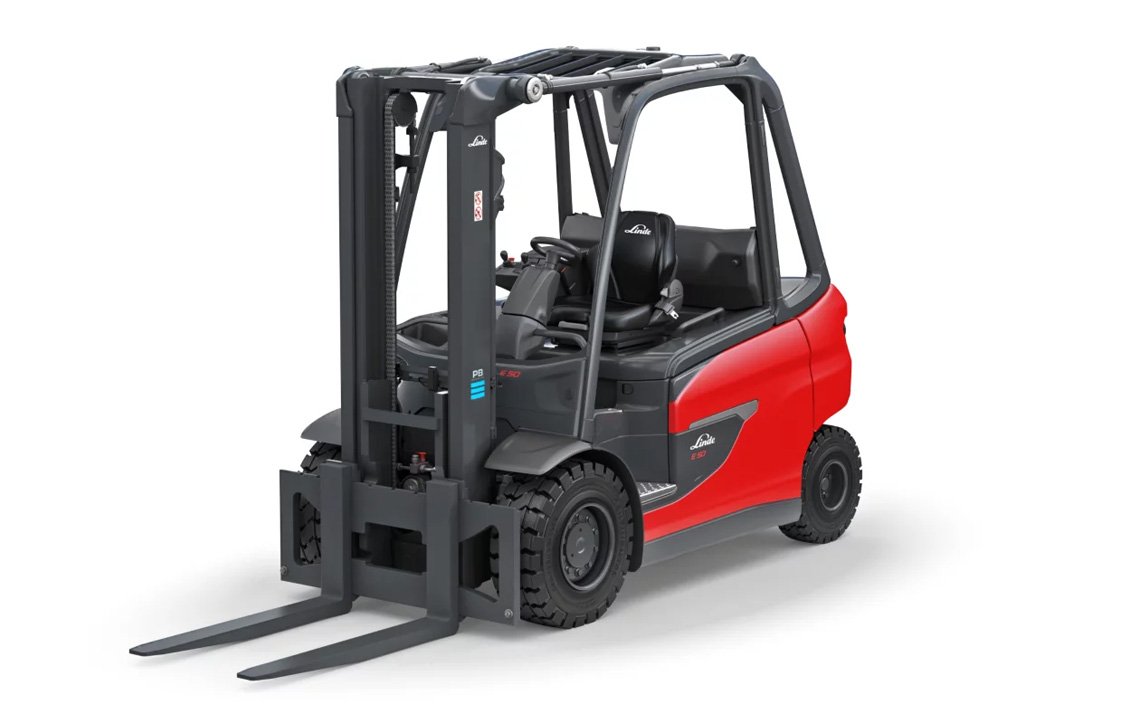

Linde E45 Electric Rider Forklift
The Linde E45 is a 4.5t forklift with a lift height of up to 3800mm. Built with premium features for safety, ergonomics, handling and service the E45 is as comfortable as it is reliable.
Linde lift truck models are available in several different options that may include pneumatic or cushion tires. increased maximum lift height, long wheelbase and decreased turning radiuses. For a full look at the Linde forklift lineup and to find the right machine for your unique material handling needs, contact a product specialist today.
Specifications
| Brakes | Wet Disc |
| Power Mode | Electric |
| Standard Mast: Free Lift | 61.0 in |
| Mast | 3-Stage |
| Maximum Fork Height | 192.0 in |
| Control Type | Microprocessor |
| Voltage | 80.0 V |
| Minimum Battery Weight | 4562.0 lbs |
| Steering | Hydrostatic |
| Center of Wheelbase | 6.3 in |
| Tread (Front/Rear) | 38.3/36.2 |
| Wheelbase | 78.3 in |
| Height To Top Overhead Guard | 91.2 in |
| Lowered Overall Height | 91.5 in |
| Overall Length | 110.8 in |
| Overall Width | 47.1 in |
| Front Overhang | 19.1 in |
| Steer Tire Size | 21 x 8-9 |
| Drive Tire Size | 250 x 15 in |
| Lift Capacity | 9000.0 lbs |
| Load Center | 24.0 in |
| Travel Speed Loaded | 8.1 |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
